Garage Doors

Aluroll Roller Garage Doors are designed for space saving, ease of installation, silent operation and trouble free maintenance. Our doors comply to latest safety regulations and security standards.

All come with strengthened PVC mouldings, heavy duty extruded aluminium bottom slats with a dual formed weather seal, thermal insulated slats, wireless sensor systems, lighting and remote control units with a manual override.

A number of options are also available, including:

  • - LPCB Secured by Design certification.
  • - Vision / Ventilation profiles.
  • - Enhanced control options: Key pad entry, mobile phone and network integration.
  • - Colour match to any RAL colour or foiled finish.
  • - Additional LED lighting strips.

At Newglaze we offer two roller garage door profiles: -

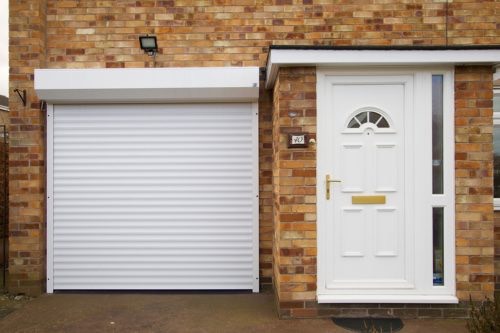

T77 - CLASSIC ROLLER GARAGE DOOR

Applications

Suitable for medium security residential applications, this garage door is individually made-to-measure to specific user requirements. Remote control operation with safety features meeting BS EN 13241-1, and manual override all as standard.

A wide range of colours and options are available, including wood grains finishes which match standard window and door frames. Installed across openings of up to 16m². The T77 can be upgraded to 'Secure by Design' status, Security Rating 1 according to LPS 1175 issue 6.0. See the T77 Elite for more information.

CURTAIN SLAT

Aluminium double skinned polyester powder-coated slat with polyurethane foam insulating core.

Colours:

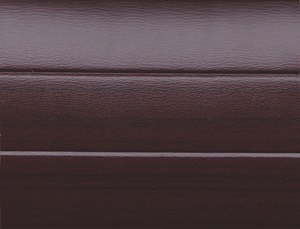

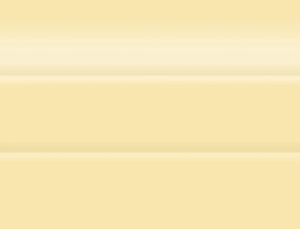

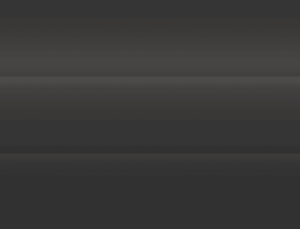

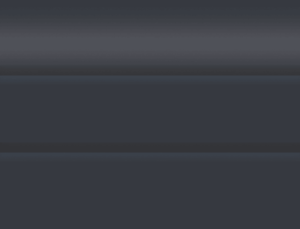

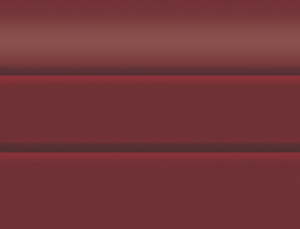

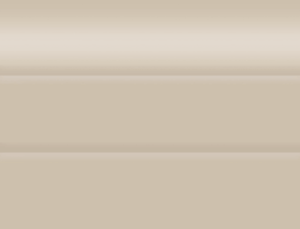

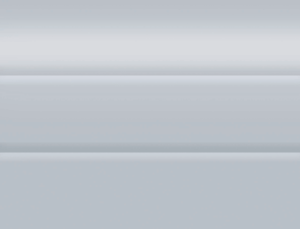

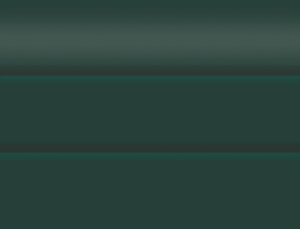

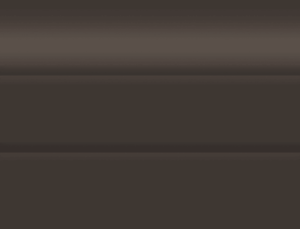

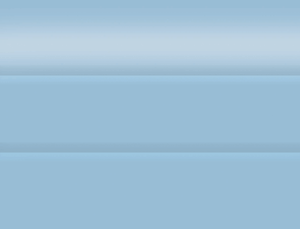

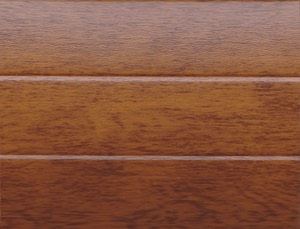

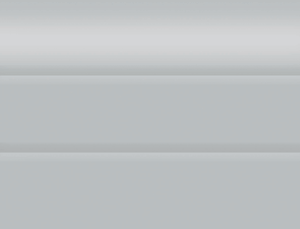

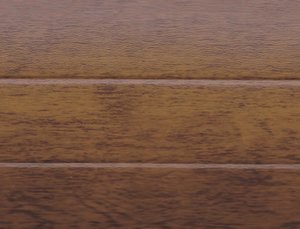

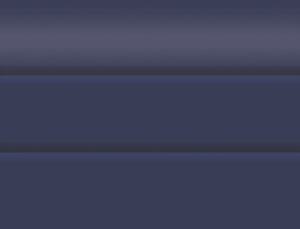

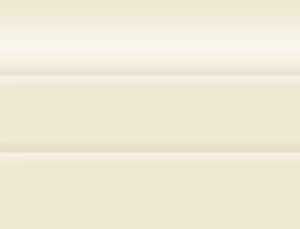

White, Silver, Grey, Cream White, Beige, Ivory, Duck Egg Blue, Blue, Red, Chartwell Green, Moss Green, Fir Green, Anthracite, Brown, Black, Painted Golden Oak or Painted Rosewood as standard. Powder coating and wood laminate effects are also available.

  • - Blind Surface :: 78mm
  • - Weight per m² :: 5.5kg
  • - Maximum Width :: 5500mm
  • - Maximum Surface :: 16m²

ENCLOSURE / HOUSING

Manufactured from roll-formed aluminium with a stove-enamelled finish. End caps are pressure -moulded and powder-coated aluminium alloy.

Colours: To match curtain colour as standard. Brown for wood effect curtains. Other colours available on request.

Guide Height (mm) Box Size (mm)

1750mm 250mm

2700mm 300mm

3640mm 360mm

GUIDE CHANNELS / BOTTOM SLAT

Manufactured from roll-formed aluminium with a stove-enamelled finish. End caps are pressure -moulded and powder-coated aluminium alloy.

Colours:To match curtain colour as standard. Brown for wood effect curtains. Other colours available on request.

OPERATION

Electric: Single phase tubular motor & remote control as standard. Numerous options such as group or remote control, external / internal switches available.

Note: Manual spring & lock operation is available but not common for the T77 profile since it is motor operation is more appropriate for larger openings in most cases.

The T77 can be tailored to requirements and installed as a standard security shutter. A scaled down Budget version is also available.

T55 - COMPACT ROLLER GARAGE DOOR APPLICATIONS

Suitable for medium security residential applications this garage door is individually made-to-measure to specific user requirements. The Compact Garage Door has been designed specifically for openings where room above or to the side of an opening is limited. Remote control operation with safety features meeting BS EN 13241-1 and manual override all as standard. A wide range of colours and options are available, including wood grains finishes which match standard window and door frames.

CURTAIN SLAT

Aluminium double skinned polyester powder coated slat with polyurethane foam insulating core

Colours: White, Silver, Grey, Cream White, Beige, Ivory, Blue, Red, Moss Green, Fir Green, Anthracite, Brown, Black, Painted Golden Oak or Painted Rosewood as standard. Wood laminate effects also available.

  • - Blind Surface :: 54mm
  • - Weight per m² :: 3kg
  • - Maximum Width :: 3000mm
  • - Maximum Surface :: 16m²

ENCLOSURE / HOUSING

Manufactured from roll formed aluminium with a stove-enamelled finish. End caps are pressure moulded aluminium alloy.

Colours: To match curtain colour as standard. Brown for wood effect curtains. Other colours available on request

Guide Height(mm) Box Size(mm)

- 2195mm 205mm

- 2650mm 250mm

GUIDE CHANNELS / BOTTOM SLAT

Extruded aluminium with weather seal. Guide channel depth is 68mm.

Colours: To match curtain colour as standard. Brown for wood effect curtains. Other colours available on request.

OPERATION

Electric: Single phase tubular motor & remote control by handset. Limitation of forces and anti-fall back devices fitted as required.

Note: Manual operation by spring and lock is available but not common for the T55 profile since garage door openings require a large number of slats.

The T55 can be tailored to requirements and installed as a standard security shutter. A scaled down Budget version is also available.

ROLLER GARAGE DOOR STANDARD FEATURES & OPTIONS

Aluroll roller garage doors are customisable to your exact job requirements; material, style, size, colour and operation. Our solutions support the latest consumer technology such as remote operation via apps and network integration including addition of lighting and other features.

Many features detailed below come as standard on Aluroll's products while others are optional extras. Browse our Roller Garage Door, Aluminium, Steel, Fire and LPCB products to understand more about options on individual products.

STANDARD FEATURES

SAFETY BRAKE

In the unlikely event the motor drive shears an automatic safety brake instantly stops the door from dropping.

Anti-Lift Locking System


Secure closure is maintained with high grade, robust lock
straps that prevent the curtain from being lifted.
Their turn lock design provides ease of installation.







Strong Guides and Slats


Extruded aluminium guides with a draught brush
and anti-rub glide-brushes ensure the door
curtain is secure and operation is smooth.
The extruded bottom weather strip channel adds further rigidity.





Space Saving Roll


The door travels vertically into a compact
roll for maximum space inside and out.
Meaning no lost space with our solutions.







Durable Slats


The curved and ribbed profile of the T77 & T55 slats
are formed from aluminium filled with CFC free foam
for a lightweight, strong and corrosion resistant curtain.







Wireless Safety Edge Sensor

The standard solution is proven for long-term
reliability and uses a wireless safety edge
to automatically halt the door on detecting
an obstruction -
fully compliant with European Safety Directives

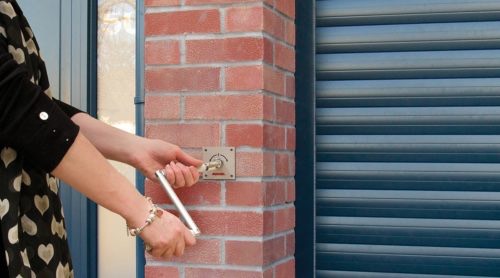

Manual Overide

If the power fails, a simple hand crank
allows you to wind the door up or
down to keep you secure
and maintain access.







Effective Weather Strip


The skirted profile of the bottom edge weatherstrip
channels rain run-off away from the door to
minimise water ingress into the garage space.







Choice Of Motors


Aluroll carefully select and test the best industry motors.
Our motors are manufactured by the likes
of Somfy, Elero, GFA and NRG Automation.
All come with a comprehensive 5 year warranty.
